Spiral-Wound Flange and Kammprofile Gaskets

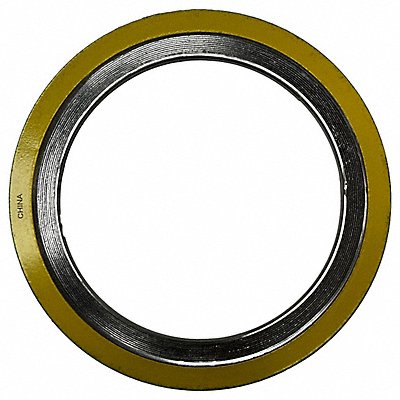

Spiral Wound Flange Gasket 3 in Pipe Sz 316-150-0300

Manufacturer: DRACO MECHANICAL SUPPLY, INC.
316-150-0300
Jahnda Part Number: 42S08O
EA

Description

Spiral Wound Flange Gasket For Flange ANSI Class 150 For Pipe Size 3 in Inside Diameter 4 in Outside Diameter 5 7/16 in Thickness 3/16 in Rim Stripe Color Gray Outside Rim Color Green Filler Material Graphite Outer Ring Material Carbon Steel Minimum Operating Temperature -100 Degrees F Maximum Operating Temperature 842 Degrees F Spiral Winding Material Stainless Steel Spiral Winding Stainless Steel Grade 316 Inner Ring Material None Inner Ring Stainless Steel Grade Not Applicable
Product Specification
Characteristic Value
Weight (lb.) 0.28 lb
Items per Unit of Issue 1
Country of Origin (subject to change) MULTIPLE
