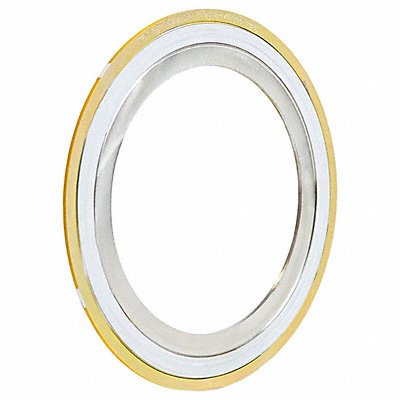

Spiral Wound Flange Gasket 1 in Pipe Sz 913M-304T-346-0100
Manufacturer: DRACO MECHANICAL SUPPLY, INC.
Jahnda Part Number: 75S08O
EA
Description
Spiral Wound Flange Gasket For Flange ANSI Class 300 400 600 For Pipe Size 1 in Inside Diameter 1 1/16 in Outside Diameter 2 15/16 in Thickness 3/16 in Rim Stripe Color White Outside Rim Color Yellow Filler Material PTFE Outer Ring Material Carbon Steel Minimum Operating Temperature -320 Degrees F Maximum Operating Temperature 500 Degrees F Spiral Winding Material Stainless Steel Spiral Winding Stainless Steel Grade 304 Inner Ring Material Stainless Steel
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.18 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | MULTIPLE |
