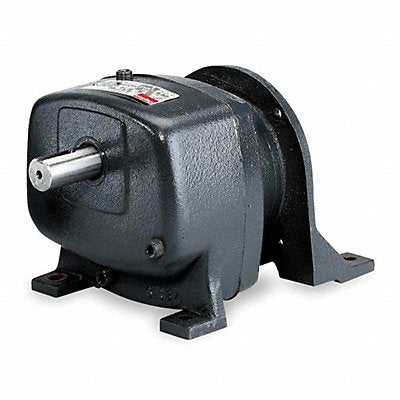

Speed Reducer C-Face 56C 57.5 1

Speed Reducer Input Connection Type C-Face Gear Type Helical Maximum Output Speed 30 RPM Motor Frame Designation 56C Base to Center 4.88 in Gear Ratio 57.5 1 Rotation CW/CCW Maximum Input Horsepower 0.5 hp Maximum Output Torque 955 in-lb Overhung Load Capacity 660 ft-lb Mounting Orientation Horizontal Application Speed Reducer Bearing Type Ball Maximum Input Speed 1 750 RPM Gear Material Hardened and Ground Steel
