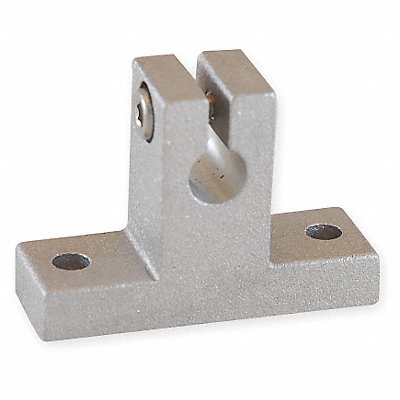

Shaft Support 1.500 In Bore 3.435 In H
Manufacturer: DAYTON
Jahnda Part Number: 07L92K
EA
Description
Mounted Linear Bearing Bolt Size 5/16 in Finish Anodized Flange Thickness 0.5 in Flange Width 1.25 in For Use With Linear Shafting Material Aluminum Maximum Operating Temperature 400 Degrees F Minimum Operating Temperature 0 Degrees F Mounting Hole Center to Center Distance 3.5 in Mounting Hole Dia (mm) 0.344 in Mounting Surface to Shaft Center (In.) 2 in Nominal Inside Diameter 1.5 in Number of Mounting Holes 2 Overall Height (In.) 3.435 in Series Dayton
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.85 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 23153030 |
| UNSPSC Segment | 23 |
| UNSPSC Family | 2315 |
| UNSPSC Class | 231530 |
| Country of Origin (subject to change) | China |
