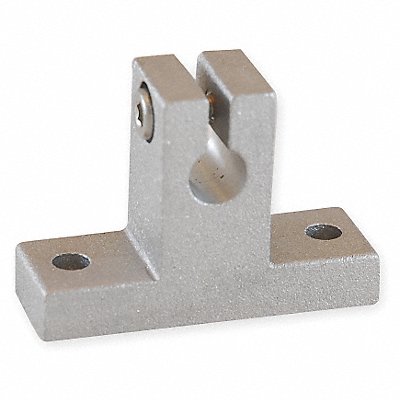

Shaft Support 1.000 In Bore 2.500 In H
Manufacturer: DAYTON
Jahnda Part Number: 05L92K
EA
Description
Mounted Linear Bearing Bolt Size 1/4 in Finish Anodized Flange Thickness 0.375 in Flange Width 1 in For Use With Linear Shafting Material Aluminum Maximum Operating Temperature 400 Degrees F Minimum Operating Temperature 0 Degrees F Mounting Hole Center to Center Distance 2.5 in Mounting Hole Dia (mm) 0.281 in Mounting Surface to Shaft Center (In.) 1.5 in Nominal Inside Diameter 1 in Number of Mounting Holes 2 Overall Height (In.) 2.5 in Series Dayton System of Measurement Inch
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.3 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 23153030 |
| UNSPSC Segment | 23 |
| UNSPSC Family | 2315 |
| UNSPSC Class | 231530 |
| Country of Origin (subject to change) | China |
