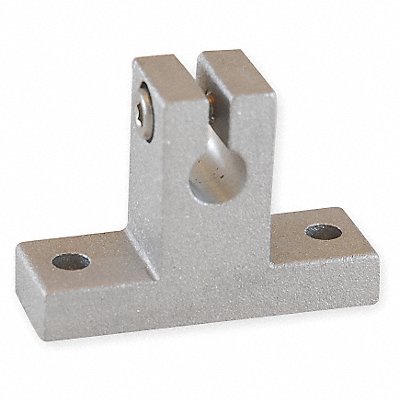

Shaft Support 0.375 In Bore 1.175 In H
Manufacturer: DAYTON
Jahnda Part Number: 01L92K
EA
Description
Mounted Linear Bearing Bolt Size #6 Finish Anodized Flange Thickness 0.25 in Flange Width 0.563 in For Use With Linear Shafting Material Aluminum Maximum Operating Temperature 400 Degrees F Minimum Operating Temperature 0 Degrees F Mounting Hole Center to Center Distance 1.25 in Mounting Hole Dia (mm) 0.156 in Mounting Surface to Shaft Center (In.) 0.75 in Nominal Inside Diameter 0.375 in Number of Mounting Holes 2 Overall Height (In.) 1.175 in Series Dayton
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.05 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 23153030 |
| UNSPSC Segment | 23 |
| UNSPSC Family | 2315 |
| UNSPSC Class | 231530 |
| Country of Origin (subject to change) | China |
