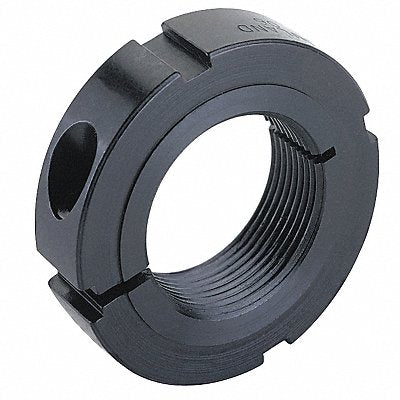

Shaft Collar Locknut 1.767-18 In Steel
Manufacturer: RULAND MANUFACTURING
Jahnda Part Number: 45U67A
EA
Description
Shaft Collar Industry Standard Size N09 Bore Thread Size 1.767 in - 18 TPI Nut Outside Diameter 2 5/8 in Face Diameter 2 9/32 in Nut Width 1/2 in Bearing Face Maximum TIR 0.0005 in Nut Material Carbon Steel Nut Material Grade 1215 System of Measurement Inch Resistance Properties Corrosion Resistant Screw Location from Center 1.07 in Screw Material Alloy Steel Maximum Operating Temperature 350 Degrees F Minimum Operating Temperature -40 Degrees F
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.4 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 31162811 |
| UNSPSC Segment | 31 |
| UNSPSC Family | 3116 |
| UNSPSC Class | 311628 |
| Country of Origin (subject to change) | United States |
