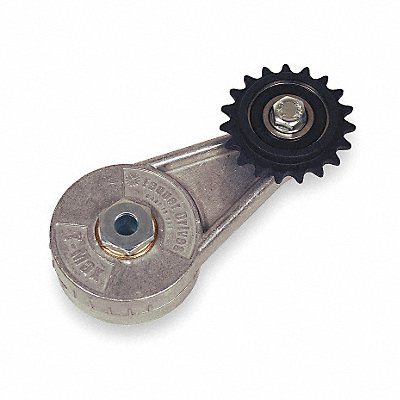

Self-Adjusting Tensioner 35 ANSI Chain
Manufacturer: FENNER DRIVES
Jahnda Part Number: 30Z96A
EA
Description
Self-adjusting tensioner Arm Rotation 45 Degrees For Chain Number 35 For V-Belt Size Not Applicable Pulley Outside Diameter 2 31/64 in Sprocket Outside Diameter 2.48 in Maximum Tension Force 30 lbf Arm Material Aluminum Base Diameter 2.76 in Features Alloy Steel Compression Springs Self-Adjusting Tensioner Eliminates Need for Regular Manual Retensioning Includes - Minimum Tension Force 0 lbf Mount Hole Diameter 13/32 in Overall Depth 1.67 in Overall Length 6.15 in
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 1.15 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 26111503 |
| UNSPSC Segment | 26 |
| UNSPSC Family | 2611 |
| UNSPSC Class | 261115 |
| Country of Origin (subject to change) | United States |
