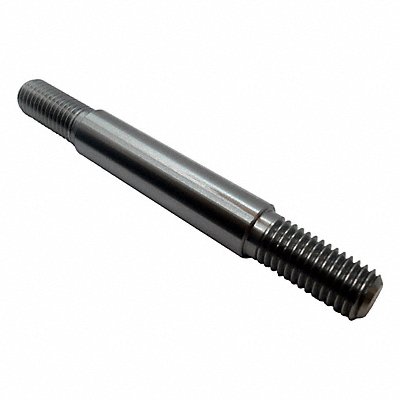

Rotary Shafts ZSHTT-M20-M1000-104SU
Manufacturer: ACCURATE MFG PRODUCTS GROUP
Jahnda Part Number: 02A89O
EA
Description
Double End Threaded Rotary Shaft Material 1045 Carbon Steel Diameter 20 mm Overall Length 1 000 mm System of Measurement Metric Diameter Tolerance +0/-0.076 mm End Type Threaded Finish Polished Keyway Depth Not Applicable Keyway Length Not Applicable Keyway Width Not Applicable Length Tolerance +/-1.6 mm Standards ASTM A108 Step Down Diameter 16 mm Step Down Diameter Tolerance +0/-0.076 mm Straightness Tolerance 1.1 mm/m Thread Size M16x1.5 Groove Spacing Not Applicable
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 5.01 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | United States |
