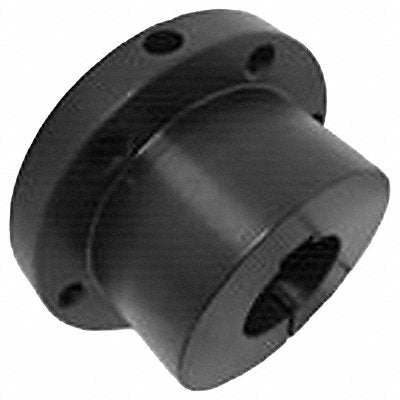

QD Bushing SK 40 mm B Dia 1.875 in L
Manufacturer: B&B MANUFACTURING, INC.
Jahnda Part Number: 70V18O
EA
Description
Quick Detachable Bushing Bushing Type Quick Detachable Bore Bushing Series SK Bore Diameter 40 mm Length 1.875 in Bolt Circle Diameter 3.31 in Bolt Size 5/16 In.-18 x 2 in System of Measurement Metric Bushing Diameter 2.813 in Fastener Tightening Torque Capacity 7 000 in-lb Flange Type Split Flange Width 1/2 in For Shaft Type Keyed Includes (3) Cap Screws Keyway Height 3.5 mm Keyway Width 12 mm Length Less Flange 1.375 in Material Steel Overall Diameter 3.875 in
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 3.17 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | China |
