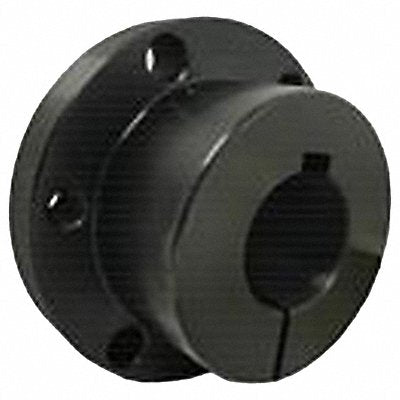

QD Bushing SH 25 mm B Dia 1.25 in L
Manufacturer: B&B MANUFACTURING, INC.
Jahnda Part Number: 48V18O
EA
Description
Quick Detachable Bushing Bushing Type Quick Detachable Bore Bushing Series SH Bore Diameter 25 mm Length 1.25 in Bolt Circle Diameter 2.25 in Bolt Size 1/4 In.-20 x 1-3/8 in System of Measurement Metric Bushing Diameter 1.871 in Fastener Tightening Torque Capacity 3 500 in-lb Flange Type Split Flange Width 3/8 in For Shaft Type Keyed Includes (3) Cap Screws Keyway Height 3.5 mm Keyway Width 8 mm Length Less Flange 0.875 in Material Steel Overall Diameter 2.688 in
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 1.12 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | China |
