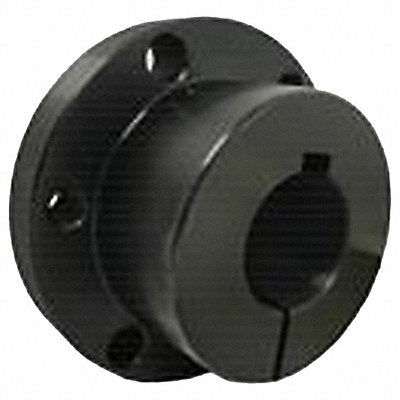

QD Bushing SH 13/16 in B Dia 1.25 in L
Manufacturer: B&B MANUFACTURING, INC.
Jahnda Part Number: 87M18O
EA
Description
Quick Detachable Bushing Bushing Type Quick Detachable Bore Bushing Series SH Bore Diameter 13/16 in Length 1.25 in Bolt Circle Diameter 2.25 in Bolt Size 1/4 In.-20 x 1-3/8 in System of Measurement Inch Bushing Diameter 1.871 in Fastener Tightening Torque Capacity 3 500 in-lb Flange Type Split Flange Width 3/8 in For Shaft Type Keyed Includes (3) Cap Screws Keyway Height 3/32 in Keyway Width 3/16 in Length Less Flange 0.875 in Material Steel Overall Diameter 2.688 in
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 1.2 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | China |
