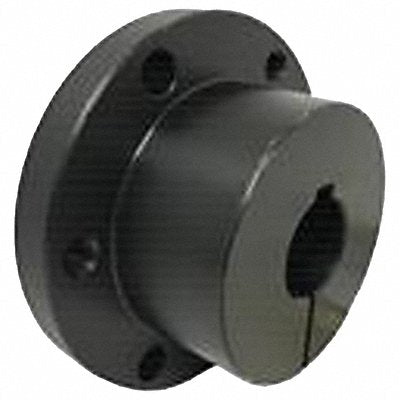

QD Bushing SF 32 mm B Dia 2 in L
Manufacturer: B&B MANUFACTURING, INC.
Jahnda Part Number: 36V18O
EA
Description
Quick Detachable Bushing Bushing Type Quick Detachable Bore Bushing Series SF Bore Diameter 32 mm Length 2 in Bolt Circle Diameter 3.88 in Bolt Size 3/8 In.-16 x 2 in System of Measurement Metric Bushing Diameter 3.125 in Flange Type Split Flange Width 1/2 in For Shaft Type Keyed Includes (3) Cap Screws Keyway Height 3.5 mm Keyway Width 10 mm Length Less Flange 1.5 in Material Steel Overall Diameter 4.625 in Taper 3/4 in Per ft
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 3.5 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | United States |
