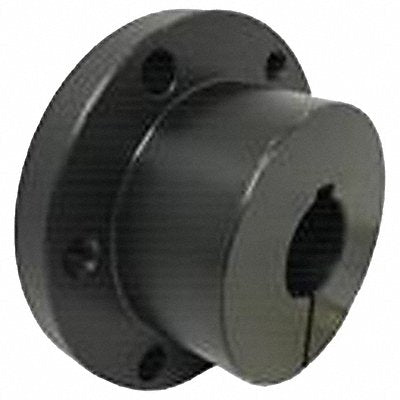

QD Bushing SF 2 5/8 in B Dia 2 in L
Manufacturer: B&B MANUFACTURING, INC.
Jahnda Part Number: 30V18O
EA
Description
Quick Detachable Bushing Bushing Type Quick Detachable Bore Bushing Series SF Bore Diameter 2 5/8 in Length 2 in Bolt Circle Diameter 3.88 in Bolt Size 3/8 In.-16 x 2 in System of Measurement Inch Bushing Diameter 3.125 in Fastener Tightening Torque Capacity 11 000 in-lb Flange Type Split Flange Width 1/2 in For Shaft Type Keyed Includes (3) Cap Screws Keyway Height 5/16 in Keyway Width 5/8 in Length Less Flange 1.5 in Material Steel Overall Diameter 4.625 in
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 3.5 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | China |
