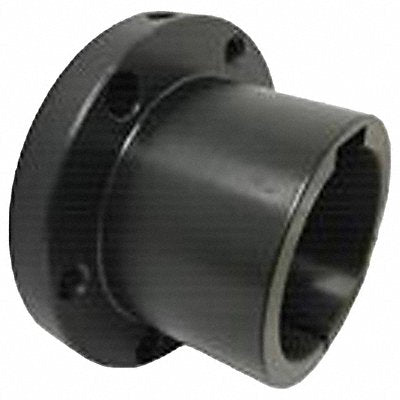

QD Bushing SD 35 mm B Dia 1.813 in L
Manufacturer: B&B MANUFACTURING, INC.
Jahnda Part Number: 96U18O
EA
Description
Quick Detachable Bushing Bushing Type Quick Detachable Bore Bushing Series SD Bore Diameter 35 mm Length 1.813 in Bolt Circle Diameter 2.69 in Bolt Size 1/4 In.-20 x 1-7/8 in System of Measurement Metric Bushing Diameter 2.188 in Fastener Tightening Torque Capacity 5 000 in-lb Flange Type Split Flange Width 7/16 in For Shaft Type Keyed Includes (3) Cap Screws Keyway Height 3.5 mm Keyway Width 10 mm Length Less Flange 1.375 in Material Steel Overall Diameter 3.188 in
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 1.6 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | China |
