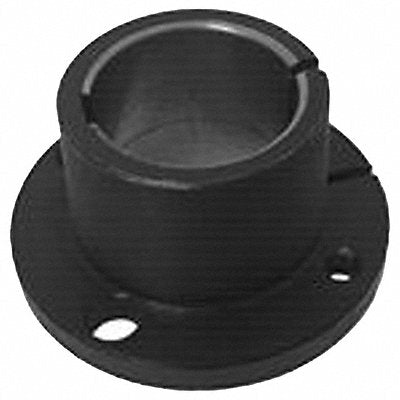

QD Bushing QT 36 mm B Dia 1.25 in L
Manufacturer: B&B MANUFACTURING, INC.
Jahnda Part Number: 84U18O
EA
Description
Quick Detachable Bushing Bushing Type Split Taper Bore Bushing Series H Bore Diameter 36 mm Length 1.25 in Bolt Circle Diameter 2 in Bolt Size Not Applicable System of Measurement Metric Bushing Diameter 1.625 in Fastener Tightening Torque Capacity 95 in-lb Flange Type Solid Flange Width 1/4 in For Shaft Type Keyed Includes (2) Cap Screws Keyway Height 3.5 mm Keyway Width 10 mm Length Less Flange 1 in Material Steel Overall Diameter 2.5 in Taper 3/4 in Per ft
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.43 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | United States |
