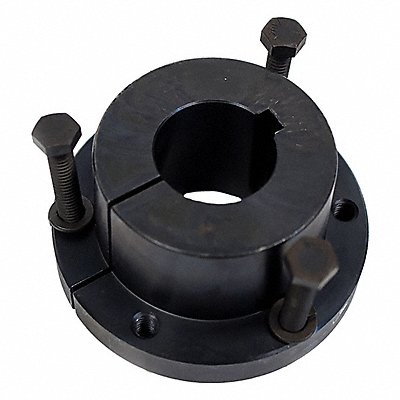

QD Bushing JA 15 mm B Dia 1 in L
Manufacturer: B&B MANUFACTURING, INC.
Jahnda Part Number: 68U18O
EA
Description
Quick Detachable Bushing Bushing Type Quick Detachable Bore Bushing Series JA Bore Diameter 15 mm Length 1 in Bolt Circle Diameter 1.66 in Bolt Size #10-24 x 1 in System of Measurement Metric Bushing Diameter 1.375 in Fastener Tightening Torque Capacity 1 750 in-lb Flange Type Split Flange Width 5/16 in For Shaft Type Keyed Includes (3) Cap Screws Keyway Height 2.4 mm Keyway Width 5 mm Length Less Flange 0.688 in Material Steel Overall Diameter 2 in Taper 3/4 in Per ft
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.5 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | China |
