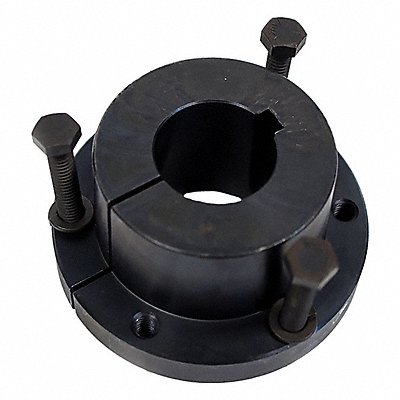

QD Bushing J 4 3/16 in B Dia 4.5 in L
Manufacturer: B&B MANUFACTURING, INC.
Jahnda Part Number: 16W18O
EA
Description
Quick Detachable Bushing Bushing Type Quick Detachable Bore Bushing Series J Bore Diameter 4 3/16 in Length 4.5 in Bolt Circle Diameter 6.25 in Bolt Size 5/8 In.-11 x 4-1/2 in System of Measurement Inch Bushing Diameter 5.148 in Fastener Tightening Torque Capacity 55 000 in-lb Flange Type Split Flange Width 1 in For Shaft Type Keyed Includes (3) Cap Screws Keyway Height 1/2 in Keyway Width 1 in Length Less Flange 3.5 in Material Steel Overall Diameter 7.25 in
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 21.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | China |
