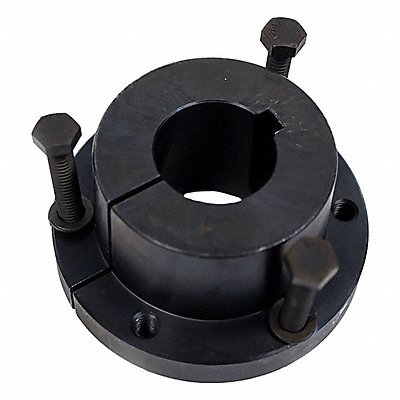

QD Bushing J 3 15/16 in B Dia 4.5 in L
Manufacturer: APPROVED VENDOR
Jahnda Part Number: 2011542
EA
Save 5%
Original price
$394.93
Original price
$394.93
-
Original price
$394.93
Original price
$394.93
Current price
$375.18
$375.18
-
$375.18
Current price
$375.18
Description
Quick Detachable Bushing Bushing Type Quick Detachable Bore Bushing Series J Bore Diameter 3 15/16 in Length 4.5 in Bolt Circle Diameter 6.25 in Bolt Size 5/8 In.-11 x 4-1/2 in System of Measurement Inch Bushing Diameter 5.148 in Fastener Tightening Torque Capacity 55 000 in-lb Flange Type Split Flange Width 1 in For Shaft Type Keyed Includes (3) Cap Screws Keyway Height 1/2 in Keyway Width 1 in Length Less Flange 3.5 in Material Steel Overall Diameter 7.25 in
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 21.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | China |
