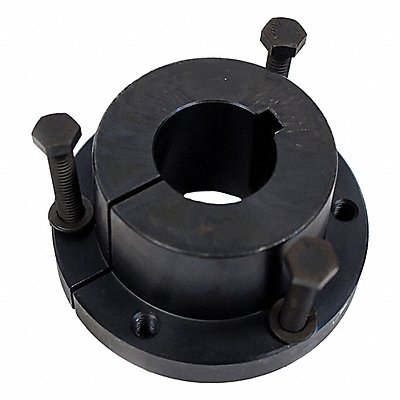

QD Bushing F 45 mm B Dia 3.625 in L
Manufacturer: B&B MANUFACTURING, INC.
Jahnda Part Number: 56U18O
EA
Description
Quick Detachable Bushing Bushing Type Quick Detachable Bore Bushing Series F Bore Diameter 45 mm Length 3.625 in Bolt Circle Diameter 5.63 in Bolt Size 9/16 In.-12 x 3-5/8 in System of Measurement Metric Bushing Diameter 4.438 in Flange Type Split Flange Width 13/16 in For Shaft Type Keyed Includes (3) Cap Screws Keyway Height 4 mm Keyway Width 14 mm Length Less Flange 2.813 in Material Steel Overall Diameter 6.625 in Taper 3/4 in Per ft
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 14.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | United States |
