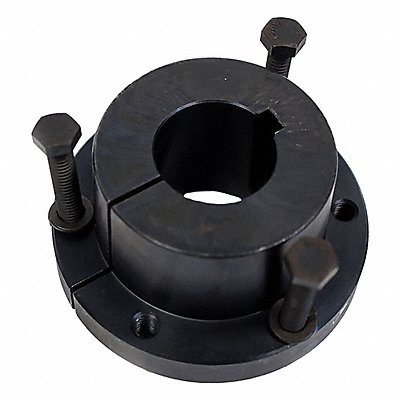

QD Bushing F 1 1/16 in B Dia 3.625 in L
Manufacturer: B&B MANUFACTURING, INC.
Jahnda Part Number: 42U18O
EA
Description
Quick Detachable Bushing Bushing Type Quick Detachable Bore Bushing Series F Bore Diameter 1 1/16 in Length 3.625 in Bolt Circle Diameter 5.63 in Bolt Size 9/16 In.-12 x 3-5/8 in System of Measurement Inch Bushing Diameter 4.438 in Fastener Tightening Torque Capacity 40 000 in-lb Flange Type Split Flange Width 13/16 in For Shaft Type Keyed Includes (3) Cap Screws Keyway Height 1/8 in Keyway Width 1/4 in Length Less Flange 2.813 in Material Steel Overall Diameter 6.625 in
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 14.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | China |
