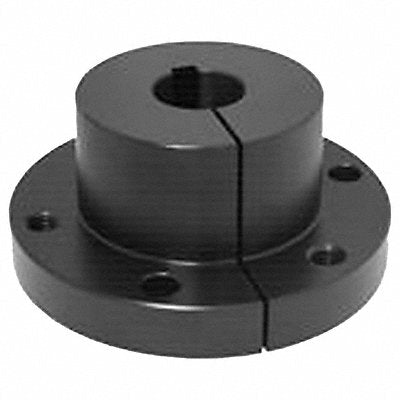

QD Bushing E 60 mm B Dia 2.625 in L
Manufacturer: APPROVED VENDOR
Jahnda Part Number: 2011361
EA
Save 5%
Original price
$161.92
Original price
$161.92
-
Original price
$161.92
Original price
$161.92
Current price
$153.82
$153.82
-
$153.82
Current price
$153.82
Description
Quick Detachable Bushing Bushing Type Quick Detachable Bore Bushing Series E Bore Diameter 60 mm Length 2.625 in Bolt Circle Diameter 5 in Bolt Size 1/2 In.-13 x 2-3/4 in System of Measurement Metric Bushing Diameter 3.834 in Fastener Tightening Torque Capacity 20 000 in-lb Flange Type Split Flange Width 3/4 in For Shaft Type Keyed Includes (3) Cap Screws Keyway Height 4.6 mm Keyway Width 18 mm Length Less Flange 1.875 in Material Steel Overall Diameter 6 in
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 12.04 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | China |
