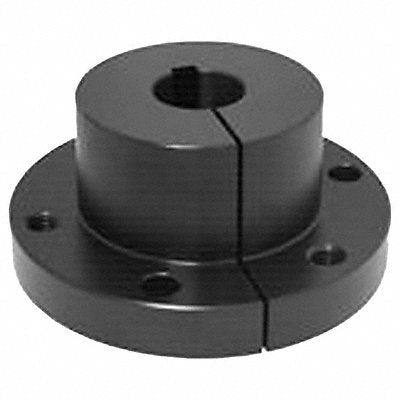

QD Bushing E 40 mm B Dia 2.625 in L
Manufacturer: B&B MANUFACTURING, INC.
Jahnda Part Number: 34U18O
EA
Description
Quick Detachable Bushing Bushing Type Quick Detachable Bore Bushing Series E Bore Diameter 40 mm Length 2.625 in Bolt Circle Diameter 5 in Bolt Size 1/2 In.-13 x 2-3/4 in System of Measurement Metric Bushing Diameter 3.834 in Flange Type Split Flange Width 3/4 in For Shaft Type Keyed Includes (3) Cap Screws Keyway Height 3.5 mm Keyway Width 12 mm Length Less Flange 1.875 in Material Steel Overall Diameter 6 in Taper 3/4 in Per ft
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 12.04 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | United States |
