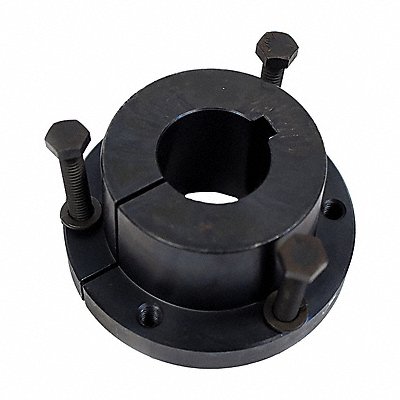

QD Bushing 2 Flange W Wx4-1/4
Manufacturer: B&B MANUFACTURING, INC.
Jahnda Part Number: 46O31P
EA
Description
QD Bushing Bushing Type Quick Detachable Bore Bushing Series W Bore Diameter 4 1/4 in Length 11.375 in Bolt Circle Diameter 12.75 in Bolt Size 1-1/8 In.-7 x 11-1/2 in System of Measurement Inch Bushing Diameter 10.437 in Flange Type Split Flange Width 2 in For Shaft Type Keyed Includes (4) Cap Screws Keyway Height 1/2 in Keyway Width 1 in Length Less Flange 9.375 in Material Cast Iron Overall Diameter 15 in Taper 3/4 in Per ft
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 80.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | China |
