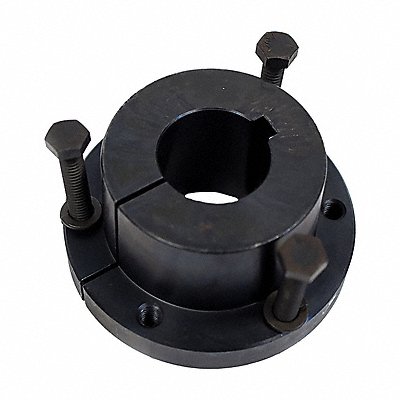

QD Bushing 1 Flange W
Manufacturer: B&B MANUFACTURING, INC.
Jahnda Part Number: 08O31P
EA
Description
QD Bushing Bushing Type Quick Detachable Bore Bushing Series J Bore Diameter 4 5/8 in Length 4.5 in Bolt Circle Diameter 6.25 in Bolt Size 5/8 In.-11 x 4-1/2 in System of Measurement Inch Bushing Diameter 5.148 in Flange Type Split Flange Width 1 in For Shaft Type Keyed Includes (3) Cap Screws Keyway Height 5/8 in Keyway Width 1 1/4 in Length Less Flange 3.5 in Material Steel Overall Diameter 7.25 in Taper 3/4 in Per ft
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 6.5 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | China |
