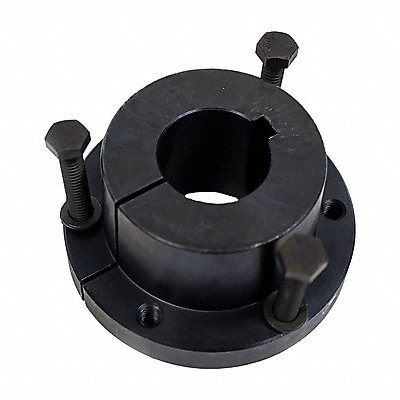

QD Bushing 1 3/4 Flange W Px5-15/16
Manufacturer: B&B MANUFACTURING, INC.
Jahnda Part Number: 45O31P
EA
Description
QD Bushing Bushing Type Quick Detachable Bore Bushing Series P Bore Diameter 5 15/16 in Length 9.375 in Bolt Circle Diameter 10 in Bolt Size 1 In.-8 x 9-1/2 in System of Measurement Inch Bushing Diameter 8.25 in Flange Type Split Flange Width 1 3/4 in For Shaft Type Keyed Includes (4) Cap Screws Keyway Height 3/4 in Keyway Width 1 1/2 in Length Less Flange 7.625 in Material Steel Overall Diameter 11.75 in Taper 3/4 in Per ft
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 125.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | China |
