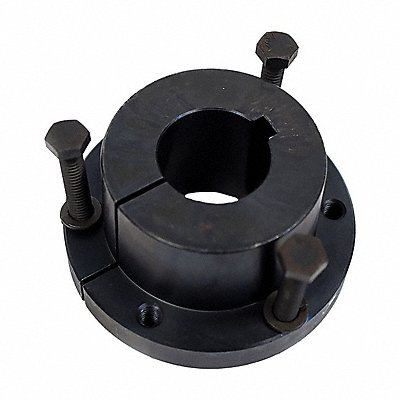

QD Bushing 1 1/4 Flange W Mx4-1/2
Manufacturer: B&B MANUFACTURING, INC.
Jahnda Part Number: 26O31P
EA
Description
QD Bushing Bushing Type Quick Detachable Bore Bushing Series M Bore Diameter 4 1/2 in Length 6.75 in Bolt Circle Diameter 7.88 in Bolt Size 3/4 In.-10 x 6-3/4 in System of Measurement Inch Bushing Diameter 6.5 in Flange Type Split Flange Width 1 1/4 in For Shaft Type Keyed Includes (4) Cap Screws Keyway Height 1/2 in Keyway Width 1 in Length Less Flange 5.5 in Material Ductile Iron Overall Diameter 9.125 in Taper 3/4 in Per ft
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 47.8 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | China |
