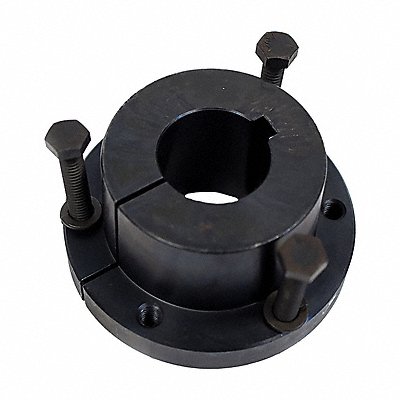

QD Bushing 1 1/2 Flange W Nx120mm
Manufacturer: B&B MANUFACTURING, INC.
Jahnda Part Number: 42O31P
EA
Description
QD Bushing Bushing Type Quick Detachable Bore Bushing Series N Bore Diameter 120 mm Length 8.125 in Bolt Circle Diameter 8.5 in Bolt Size 7/8 In.-9 x 8-1/2 in System of Measurement Metric Bushing Diameter 7 in Flange Type Split Flange Width 1 1/2 in For Shaft Type Keyed Includes (4) Cap Screws Keyway Height 7.6 mm Keyway Width 32 mm Length Less Flange 6.625 in Material Ductile Iron Overall Diameter 10 in Taper 3/4 in Per ft
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 80.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | China |
