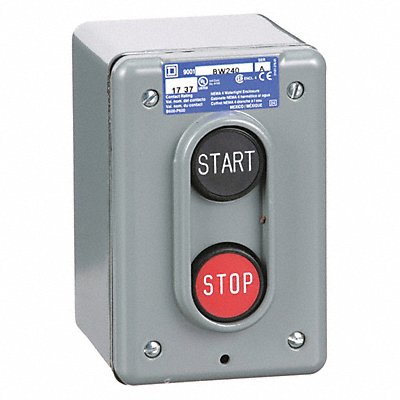

Push Buttn Cntrl Station Start/Stop 30mm
Manufacturer: SQUARE D
Jahnda Part Number: 64L85A
EA
Description
Push Button Control Station Number of Operators 2 Size 30 mm Legend Start/Stop Type of Operator Push Button/Push Button Action Momentary / Momentary Contact Form 1NO/1NC Mechanical Interlock No NEMA Rating 4 Contact Rating 5A @ 600V AC/24V DC IP Rating 66 Mounting Wall Hub 1/2 in NPT Height 3.6 in Width 2.76 in Depth 4.25 in Enclosure Material Cast Zinc Standards CE CSA Certified UL Listed
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 2.4 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 39121512 |
| UNSPSC Segment | 39 |
| UNSPSC Family | 3912 |
| UNSPSC Class | 391215 |
| Country of Origin (subject to change) | Mexico |
