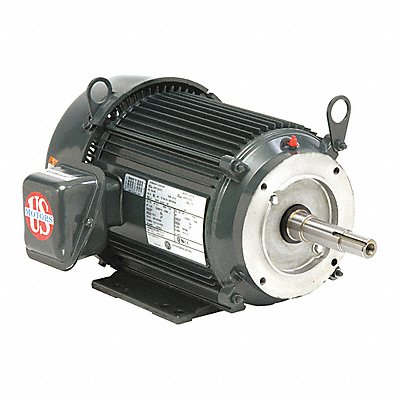

Pump Motor 7/8 Dia 5 hp Enclosed
Manufacturer: U.S. MOTORS
Jahnda Part Number: 16W31K
EA
Description
Pump Motor 5 hp 1 760/1 440 208-230/460V AC 184JM Shaft Dia 7/8 in 1.25 3-Phase Totally Enclosed 1 701-1 800 Rear/Foot Voltage Compatibility 190V AC 208V AC 230V AC 380V AC 460V AC Phase Three Pump Close-Coupled Pump 60/50 Hz 13.6-12.3/6.2 A Ins. Class F Length Less Shaft 11 3/4 in 40 Degrees C Premium Efficient Motor Frame Material Cast Iron Keyed CW/CCW Nominal Efficiency 90.2 Percent Overall Length 16 in Shaft Length 4 1/4 in CE
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 70.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
