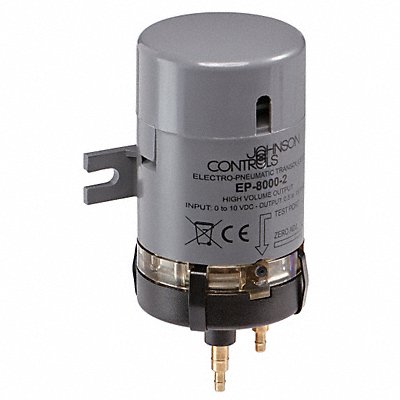

Pneumatic Transducer 10-20VDC 18-25 psi
Manufacturer: JOHNSON CONTROLS
Jahnda Part Number: 25C72A
EA
Description
Electronic Pneumatic Transducer Voltage Input Type Direct Acting Max Safe Air PSI 25 psi Control Air Pressure 18 to 25 psi Air Connections 5/32 in or 1/4 in Barb Height 3 11/32 in Width 1 25/32 in Depth 2 in Air Consumption 0.022 scfm Max Ambient Temp 122 Degrees F Input Voltage 0-10VCD Output Low Volume Output Range 1 to 18 psi Temp Coefficient 0.05 psig/ Degrees F Linearity 5 Percent Maximum of Output Span Between 3 to 15 psig
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.45 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 41112107 |
| UNSPSC Segment | 41 |
| UNSPSC Family | 4111 |
| UNSPSC Class | 411121 |
| Country of Origin (subject to change) | Mexico |
