Pneumatic 4350034280
Manufacturer: SHARPE VALVES
Jahnda Part Number: 76D99O
EA
Description

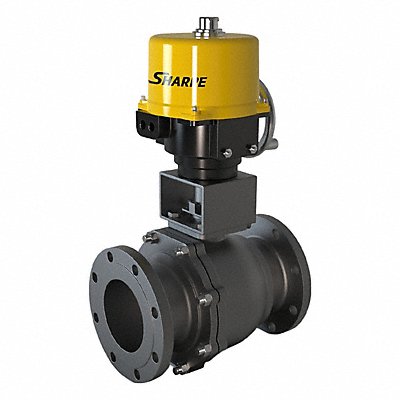

Electrically Actuated Two-Way Ball Valve Ball Material 316 Stainless Steel Nominal Valve Size 6 in Maximum Pressure - Operating 285 psi Actuator Operation 90 Degrees Valve Body Style Straight Seat Material RPTFE Seal Material PTFE Voltage 120V Fail Safe Position Fail Last IP Rating IP67 Actuator Cycle Time - 90 Degrees 28 sec Valve Construction Two-Piece Actuator Features Thermal Overload Protection Manual Override Internally Fused/Automatic Reset Position Indicator
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 205.7 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Taiwan |
