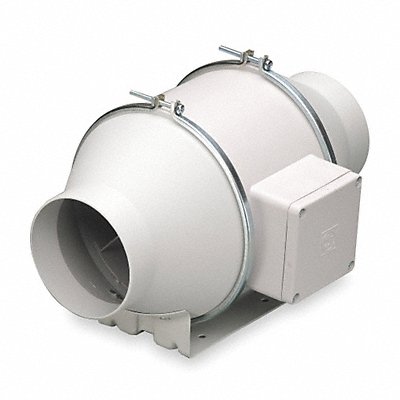

Plastic 9 D 5.6 H 5.6 W Inline Duct Fan
Manufacturer: SOLER PALAU
Jahnda Part Number: 39V23B
EA
Description
In-Line Duct Fan For Fan Type In-Line Duct Fan Airflow @ 0.000 in SP 538 cfm Duct Diameter 8 in Motor Output Power 184 W Motor IP Rating IP44 Nameplate Voltage 120V AC Phase 1 Number of Speeds 1 Overall Diameter 8 5/8 in Overall Height 5 5/8 in Overall Width 5 5/8 in Application General Purpose High-Efficiency Motor No Housing Material Thermoplastic Motor Speed 2 800 RPM Includes Mounting Bracket Maximum Inlet Air Temperature 140 Degrees F Speed Controllable Yes
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 12.2 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 40101604 |
| UNSPSC Segment | 40 |
| UNSPSC Family | 4010 |
| UNSPSC Class | 401016 |
| Country of Origin (subject to change) | Spain |
