Pipe Flange Steel 4 Pipe Size Class 300
Manufacturer: USA INDUSTRIALS, INC.
Jahnda Part Number: 79K46O
EA
Description

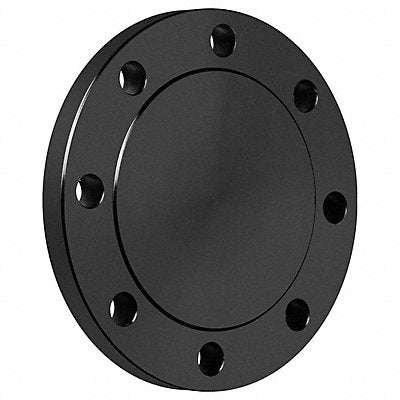

Blind Flange Raised Face 4 in Nominal Pipe Size Flanged x Blind 10 in Flange Outside Diameter 1 3/16 in Flange Thickness 10 in Overall Length Steel Black Coated Class Class 300 For Pipe Schedule 80 725 psi Maximum Operating Pressure 725 psi Max Steam Pressure 80 Degrees to 780 Degrees F Number of Bolt Holes 8 3/4 in Bolt Hole Diameter
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 25.3 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 40141734 |
| UNSPSC Segment | 40 |
| UNSPSC Family | 14 |
| UNSPSC Class | 17 |
| Country of Origin (subject to change) | China |
