Pipe Flange Schedule 40 316/316L SS 4381006220
Manufacturer: ANVIL INTERNATIONAL, LLC
Jahnda Part Number: 46N75O
EA
Description

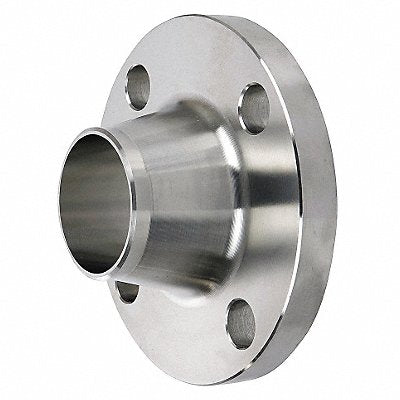

Schedule 40 Weld Neck Flange Raised Face 1 in Nominal Pipe Size Flanged x Weld Neck 4 7/8 in Flange Outside Diameter 11/16 in Flange Thickness 2 7/16 in Overall Length Stainless Steel 316/316L Class Class 300 720 psi Maximum Operating Pressure 300 psi Max Steam Pressure Number of Bolt Holes 4 3 1/8 in Bolt Circle Diameter 5/8 in Bolt Hole Diameter
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 4.2 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 40142412 |
| UNSPSC Segment | 40 |
| UNSPSC Family | 14 |
| UNSPSC Class | 24 |
| Country of Origin (subject to change) | South Korea |
