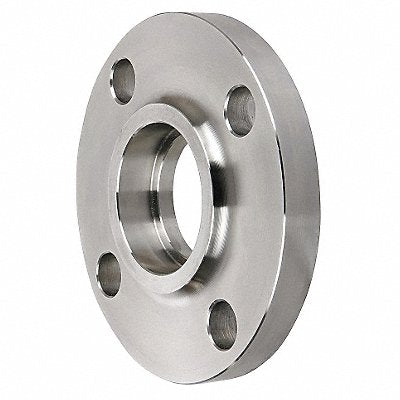

Pipe Flange Schedule 40 316/316L SS 4381005620
Manufacturer: ANVIL INTERNATIONAL, LLC
Jahnda Part Number: 33N75O
EA
Description
Schedule 40 Socket Weld Flange Raised Face 1 in Nominal Pipe Size Flanged x Socket Weld 4 7/8 in Flange Outside Diameter 11/16 in Flange Thickness 1 1/16 in Overall Length Stainless Steel 316/316L Class Class 300 720 psi Maximum Operating Pressure 300 psi Max Steam Pressure Number of Bolt Holes 4 3 1/2 in Bolt Circle Diameter 3/4 in Bolt Hole Diameter
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 3.3 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 40142409 |
| UNSPSC Segment | 40 |
| UNSPSC Family | 14 |
| UNSPSC Class | 24 |
| Country of Origin (subject to change) | South Korea |
