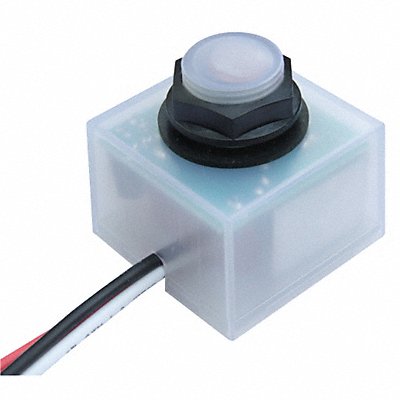

Photocontrol Fixed 120 to 277VAC
Manufacturer: DAYTON
Jahnda Part Number: 23D71K
EA
Description
Photocontrol Mounting Fixed Voltage 120 to 277V AC Max Wattage 1 662 Max Incandescent Amps 6 A Max Ballast Amps 6 A 10.0 to 20.0 Foot Candles On 30 to 60 Foot Candles Off Color Translucent Temp Range -40 Degrees to 158 Degrees F Length 1 3/4 in Width 1 3/4 in Depth 1 7/8 in Enclosure Type Raintight Contact Form SPST Housing Material Polycarbonate Setting Dusk to Dawn Standards UL Includes Lock Nut Washer Gasket
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.15 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 39121524 |
| UNSPSC Segment | 39 |
| UNSPSC Family | 3912 |
| UNSPSC Class | 391215 |
| Country of Origin (subject to change) | China |
