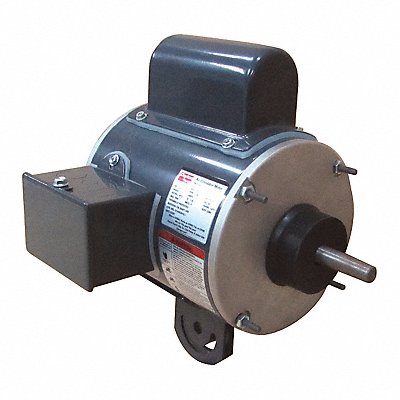

Pedestal an Motor 1/2 HP 277V
Manufacturer: DAYTON
Jahnda Part Number: 25A52O
EA
Description
Pedestal Fan Motor Single Phase Motor Design Permanent Split Capacitor 1/2 HP Nameplate RPM 1 100 No of Speeds 1 Voltage 277V AC 1.8 A Full Load Amps 48YZ Frame 60 Hz Hz Motor Service Factor 1 Motor Thermal Protection None Ins. Class B Duty Cycle Continuous Motor Shaft Rotation CWSE Motor Enclosure Design Totally Enclosed Air-Over Motor Mounting Type Yoke Shaft Length 3 in Shaft Dia 1/2 in
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 24.2 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 26101612 |
| UNSPSC Segment | 26 |
| UNSPSC Family | 2610 |
| UNSPSC Class | 261016 |
| Country of Origin (subject to change) | China |
