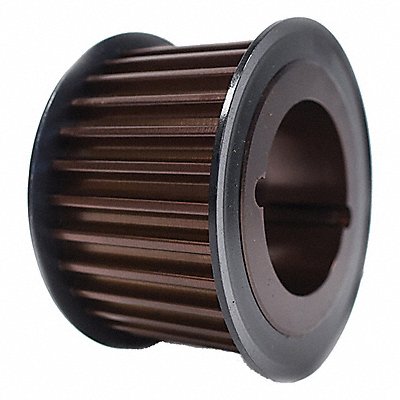

PCGT Timing Belt Pulley 14 mm Pitch 50-14MX68-3525
Manufacturer: B&B MANUFACTURING, INC.
Jahnda Part Number: 95I08O
EA
Description
PCGT Timing Belt Pulley For Belt Series Poly Chain GT Carbon For Belt Width 68 mm For Bushing Size 3525 For Bushing Type Taper Lock For Use With Poly Chain GT Carbon Belts Material Cast Iron Maximum Bore Diameter 3 15/16 in Minimum Bore Diameter 1 1/2 in Number of Teeth 50 Outside Diameter 9.292 in Pitch 14 mm Pitch Diameter 8.772 in Face Width 3.328 in Features Built for High-Torque Low-Speed Applications Outperforms Industry Standards Superb Flexibility Finish Black Oxide
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 27.87 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 31171804 |
| UNSPSC Segment | 31 |
| UNSPSC Family | 17 |
| UNSPSC Class | 18 |
| Country of Origin (subject to change) | China |
