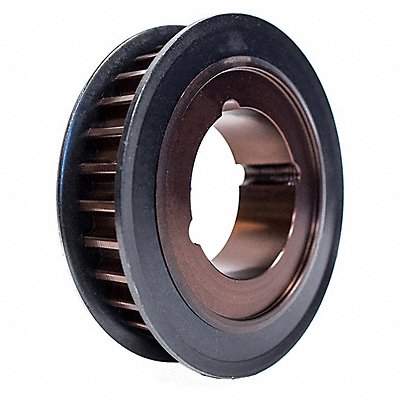

PCGT Timing Belt Pulley 14 mm Pitch 29-14MX20-2012
Manufacturer: B&B MANUFACTURING, INC.
Jahnda Part Number: 77H08O
EA
Description
PCGT Timing Belt Pulley For Belt Series Poly Chain GT Carbon For Belt Width 20 mm For Bushing Size 2012 For Bushing Type Taper Lock For Use With Poly Chain GT Carbon Belts Material Cast Iron Maximum Bore Diameter 2 in Minimum Bore Diameter 1/2 in Number of Teeth 29 Outside Diameter 5.562 in Pitch 14 mm Pitch Diameter 5.088 in Face Width 1.359 in Features Built for High-Torque Low-Speed Applications Outperforms Industry Standards Superb Flexibility Finish Black Oxide
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 4.54 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 31171804 |
| UNSPSC Segment | 31 |
| UNSPSC Family | 17 |
| UNSPSC Class | 18 |
| Country of Origin (subject to change) | United States |
