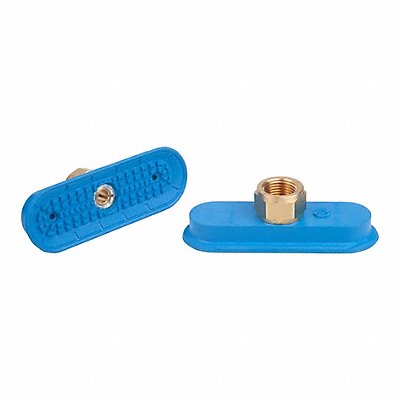

Oval Suction Cup for Sheet handling 10.01.05.00810
Manufacturer: SCHMALZ
Jahnda Part Number: 98F28O
EA
Description
Item Vacuum Pad Assembly Adapter Material Nickel Plated Durometer 45 A For Use With Handling Sheet Metal Maximum Vacuum Pressure -0.6 bar Number of Folds 0 Overall Height 34.5 mm Pad Color Blue Pad Diameter 30 mm 90 mm Hardness 45 Shore A Pad Height 27 mm Pad Material NBR Pad Type Flat Oval Port Size 3/8 in Port Type NPT Series SAOF Standards DIN ISO 3302-1 M3 Stroke 3 mm Weight 60 g
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.14 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 27131608 |
| UNSPSC Segment | 27 |
| UNSPSC Family | 13 |
| UNSPSC Class | 16 |
| Country of Origin (subject to change) | Germany |
