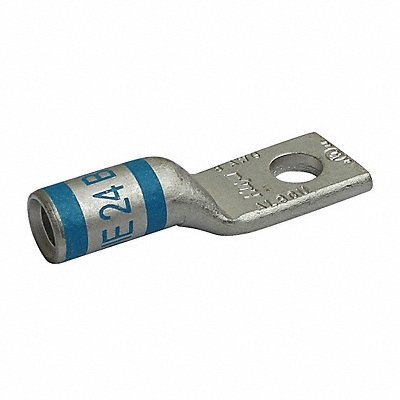

OneHoleLugCmprsnConn Short Blue 24
Manufacturer: APPROVED VENDOR
Jahnda Part Number: 37M72K
EA
Description
One-Hole Lug Compression Connector Barrel Size Short Color Code Blue Die Code 24 Tongue Angle Straight Tongue Width 0.6 in For Conductor Material Aluminum For Stud Size 5/16 in For Stranded Copper Wire Size - Minimum 8 AWG For Stranded Copper Wire Size - Maximum 8 AWG Inspection Hole No Material Aluminum Maximum Operating Temperature 300 Degrees F Maximum Voltage 600 V AC Termination Style Crimp Seam Style Seamless Standards UL Listed Number of Holes 1 RoHS Compliant Yes
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.01 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 39121405 |
| UNSPSC Segment | 39 |
| UNSPSC Family | 3912 |
| UNSPSC Class | 391214 |
| Country of Origin (subject to change) | China |
