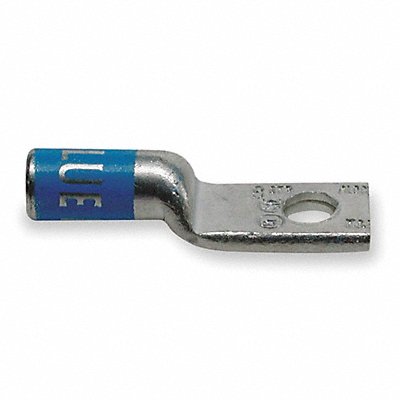

OneHoleLugCmprsnConn Long Blue 76H
Manufacturer: THOMAS BETTS
Jahnda Part Number: 08Q83B
PK
Description
One-Hole Lug Compression Connector Barrel Size Long Color Code Blue Die Code 76H Tongue Angle Straight Tongue Width 1.39 in For Conductor Material Copper For Stud Size 3/8 in For Stranded Copper Wire Size - Maximum 300 kcmil Inspection Hole No Hole Center to Center Not Applicable Material Aluminum Maximum Operating Temperature 194 Degrees F Maximum Voltage 35 kV AC Standards CSA Certified UL E9809 Number of Holes 1 Barrel Outside Diameter 0.99 in Connector Type Straight Barrel
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.02 lb |
| Items per Unit of Issue | 2 |
| UNSPSC | 39121405 |
| UNSPSC Segment | 39 |
| UNSPSC Family | 3912 |
| UNSPSC Class | 391214 |
| Country of Origin (subject to change) | Mexico |
