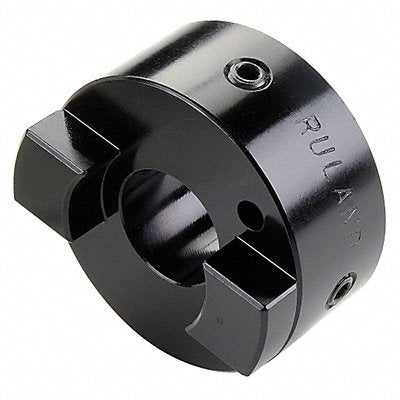

Oldham Coupling Hub Set Screw 8mm
Manufacturer: RULAND MANUFACTURING
Jahnda Part Number: 05A65A
EA
Description
Motion Control Coupling Hub Angular Misalignment 0.5 Degrees Axial Motion 0.1 mm Coupling Size MOST25 Outside Diameter 25.4 mm Over-Standard Parallel Misalignment 2.54 mm Parallel Misalignment 0.2 mm Coupling Overall Length 28.6 mm Hub Material Aluminum Length through Bore 9.9 mm System of Measurement Metric Bore Diameter 8 mm Maximum Speed 4 500 RPM Bore Type Round Shaft Locking Type Set Screw Keyway Depth Not Applicable Keyway Width Not Applicable Screw Seating Torque 2.2 N-m
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.03 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 31162811 |
| UNSPSC Segment | 31 |
| UNSPSC Family | 3116 |
| UNSPSC Class | 311628 |
| Country of Origin (subject to change) | United States |
