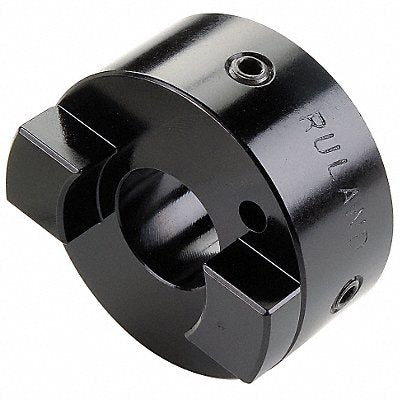

Oldham Coupling Hub Set Screw 12mm
Manufacturer: RULAND MANUFACTURING
Jahnda Part Number: 71G67A
EA
Description
Motion Control Coupling Hub Angular Misalignment 0.5 Degrees Axial Motion 0.15 mm Coupling Size MOST33 Outside Diameter 33.3 mm Over-Standard Parallel Misalignment 3.33 mm Parallel Misalignment 0.2 mm Coupling Overall Length 47.6 mm Hub Material Aluminum Length through Bore 15 mm System of Measurement Metric Bore Diameter 12 mm Maximum Speed 4 500 RPM Bore Type Round Shaft Locking Type Set Screw Keyway Depth Not Applicable Keyway Width Not Applicable
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.08 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 31163003 |
| UNSPSC Segment | 31 |
| UNSPSC Family | 3116 |
| UNSPSC Class | 311630 |
| Country of Origin (subject to change) | United States |
