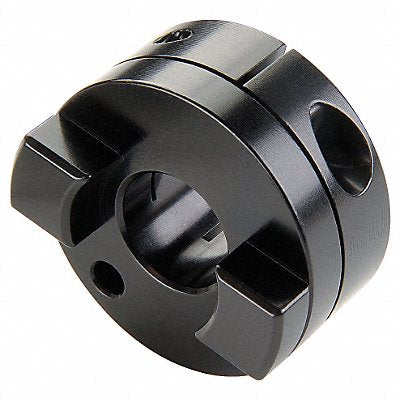

Oldham Coupling Hub Clamp 7mm
Manufacturer: RULAND MANUFACTURING
Jahnda Part Number: 86L67A
EA
Description
Motion Control Coupling Hub Angular Misalignment 0.5 Degrees Axial Motion 0.1 mm Coupling Size MOCT19 Outside Diameter 19.1 mm Over-Standard Parallel Misalignment 1.91 mm Parallel Misalignment 0.2 mm Coupling Overall Length 25.4 mm Hub Material Aluminum Length through Bore 9.7 mm System of Measurement Metric Bore Diameter 7 mm Maximum Speed 4 500 RPM Bore Type Round Shaft Locking Type Clamp On Keyway Depth Not Applicable Keyway Width Not Applicable Screw Seating Torque 1.21 N-m
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.03 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 31163003 |
| UNSPSC Segment | 31 |
| UNSPSC Family | 3116 |
| UNSPSC Class | 311630 |
| Country of Origin (subject to change) | United States |
