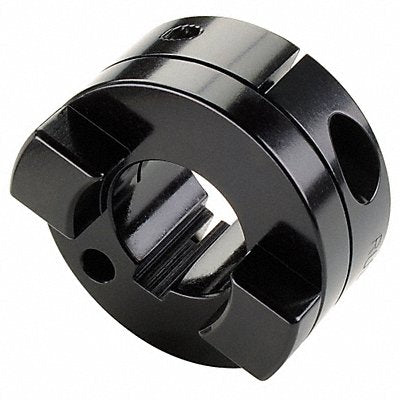

Oldham Coupling Hub Clamp 5/8
Manufacturer: RULAND MANUFACTURING
Jahnda Part Number: 23M67A
EA
Description
Motion Control Coupling Hub Angular Misalignment 0.5 Degrees Axial Motion 0.008 in Coupling Size OCC32 Outside Diameter 2 in Over-Standard Parallel Misalignment 0.2 in Parallel Misalignment 0.01 in Coupling Overall Length 2.35 in Hub Material Aluminum Length through Bore 0.82 in System of Measurement Inch Bore Diameter 5/8 in Maximum Speed 4 500 RPM Bore Type Round Keyed Shaft Locking Type Clamp On Keyway Depth 3/32 in Keyway Width 3/16 in Screw Seating Torque 9.5 N-m
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.31 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 31163003 |
| UNSPSC Segment | 31 |
| UNSPSC Family | 3116 |
| UNSPSC Class | 311630 |
| Country of Origin (subject to change) | United States |
