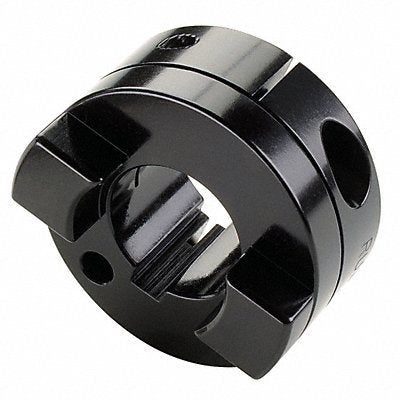

Oldham Coupling Hub Clamp 3/4
Manufacturer: RULAND MANUFACTURING
Jahnda Part Number: 55X55A
EA
Description
Motion Control Coupling Hub Angular Misalignment 0.5 Degrees Axial Motion 0.006 in Coupling Size OCC26 Outside Diameter 0.163 in Over-Standard Parallel Misalignment 0.163 in Parallel Misalignment 0.01 in Coupling Overall Length 2 in Hub Material Aluminum Length through Bore 0.71 in System of Measurement Inch Bore Diameter 3/4 in Maximum Speed 4 500 RPM Bore Type Round Keyed Shaft Locking Type Clamp On Keyway Depth 3/32 in Keyway Width 3/16 in Screw Seating Torque 4.6 N-m
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.1 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 31162811 |
| UNSPSC Segment | 31 |
| UNSPSC Family | 3116 |
| UNSPSC Class | 311628 |
| Country of Origin (subject to change) | United States |
