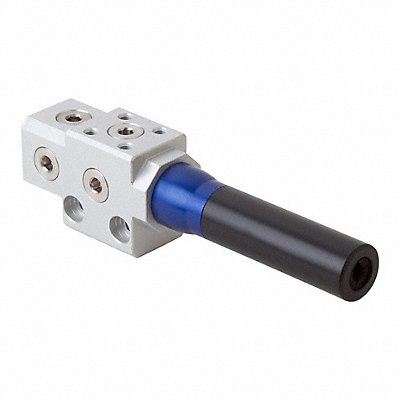

Multistage Ejector 10.02.01.01730
Manufacturer: SCHMALZ
Jahnda Part Number: 09I28O
EA
Description
Item Multistage Ejector Actuation Mechanism Pressure Air Consumption 0.83 cfm Maximum Flow Rate 1.5 cfm Maximum Operating Temperature 60 Degrees C Maximum Supply Pressure 6 bar Maximum Vacuum Pressure 6 bar Minimum Operating Temperature 0 Degrees C Minimum Supply Pressure 2 bar Minimum Vacuum Pressure 2 bar Nozzle Diameter 0.7 mm Number of Stages 2 Overall Depth 23 mm Overall Height 33 mm Overall Length 121 mm Pressure Port Gender Female Pressure Port Size 1/8 in
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.27 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Germany |
