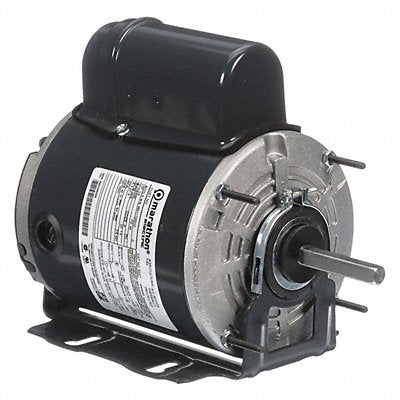

Motor PSC 1/4 HP 1075 RPM 115/230 V
Manufacturer: MARATHON MOTORS
Jahnda Part Number: 75J44A
EA
Description
General Purpose Farm Duty Motor Single Phase Motor Design Permanent Split Capacitor 1/4 HP Nameplate RPM 1 075 No of Speeds 1 Voltage 115/230V AC Full Load Amps 3.2/1.6 A 48Y Frame Usable @ 208V No Usable @ 200V No 60 Hz Hz Motor Service Factor 1 Motor Thermal Protection Auto Ins. Class B Max Ambient Temp 40 Degrees C Duty Cycle Continuous Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Air-Over Motor Mounting Type Face
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 14.8 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 26101602 |
| UNSPSC Segment | 26 |
| UNSPSC Family | 2610 |
| UNSPSC Class | 261016 |
| Country of Origin (subject to change) | Mexico |
